Highly Reliable Connectivity
Dual SIM & Auto link carrier detection and network switching features ensure uninterrupted internet access . Embedded watchdog keeps the device always online.
No Coding - Plug & Play
The Plug & Play device feature eliminates the need for coding and allows you to quickly connect your device to the most popular IoT public and private platforms.
Supporting Wide Range of Industrial Protocol
Device offers multiple industrial protocols like MODBUS RTU , MODBUS TCP , JSON , MQTT , FTP and support secure communication SSL.
Industrial Isolated IO
Intelligent Data logger offers multiple isolated IO to monitor PLC and, VFD , Motors, servo, Valves, energy meter, actuators, relays, encoder, RFID and finger print readers, industrial sensors
Alarm & Automated Task
Device Send emergency alerts and different escalation level SMS to the remote users on a real time basis . Device also supports automating the remote asset based on a set threshold
Easy Remote Management
You can easily monitor onsite devices health and bulk configuration through remote access or remote maintenance solution .
Industrial Grade Design
Product designed to withstand with industrial noise and Harsh Environmental Conditions Isolated & Protected IO & EMC / EMI compliance .
Applications
- Production and process monitoring.
- Utilities monitoring.
- Condition monitoring.
- Environment monitoring.
- Industrial Smart grid
- Leakage detection.
- Cold storage monitoring.
- District metering.
- Water treatment.
- Generator monitoring.
- Green House.
- Warning message in case of calamities.
- Standard SCADA Applications

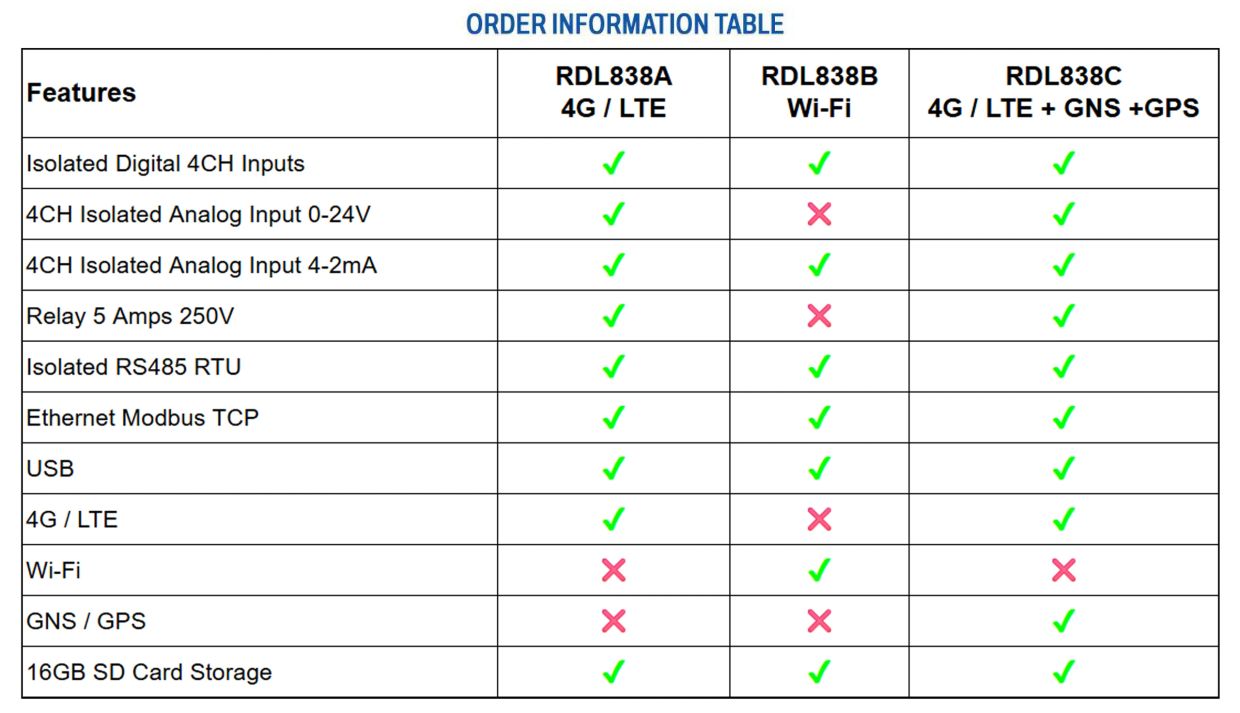

Order Information
OEM & White label Service
RDL OEM (Original Equipment Manufacturer) that designs and builds a product based on their own specification, and then sells it to another company for branding and distribution.
OEM Minimum order quantity 100 to 500 no's.
CUSTOM SOLUTION DEVELOPMENT
Quick adaptability to any kind of customization requirements be it structural, functional, or Look-and-feel. Seamless transformation made possible for every possible aspects to tailor the standard products to realise your creative imagination.
Dynamic Process Support
Highly Flexible, competitive, and economical solutions encompassing support for wide variety of business domains where customers are sure of getting delightful business deals.
Data Loggers
Industrial Data Logger - 4G LTE
Industrial Data Logger - Flame Proof
Industrial Data Logger - Metal Case
- 12 x Isolated Analog Input Channel 0-10V, 0-24v, 4-20mA.16 Bit Resolution and 860SPS.
- 4x Isolated Digital Input 24V.
- 3x Isolated Digital Output / PWM 24v.
- 1x Relay (NO & C).
- 1x Isolated RS485 for MODBUS RTU Communication.
- 1x Isolated Ethernet 10 / 100Mbps MODBUS TCP Communication.
- 1x USB-Device Interface for Configuring, Monitoring and Download
- 12 x Isolated Analog Input Channel 0-10V, 0-24v, 4-20mA.16 Bit Resolution and 860SPS.
- 4x Isolated Digital Input 24V.
- 3x Isolated Digital Output / PWM 24v.
- 1x Relay (NO & C).
- 1x Isolated RS485 for MODBUS RTU Communication.
- 1x Isolated Ethernet 10 / 100Mbps MODBUS TCP Communication.
- 1x USB-Device Interface for Configuring, Monitoring and Download.
- 1x WiFi / 2G / 4G / LTE Wireless Communication.
- Configure and Read Multiple Slave IDs, Selectable Input Register Holding Register & Coil.
- Configurable Data Type and Conversion Method (INT, Long INT, FLOAT, Double Float & RawHex) UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC).
- Industrial Grade Design - Isolated & Protected IO & EMC / EMI Compliance.
Industrial Data Logger - Metal Case
Industrial Data Logger - Flame Proof
Industrial Data Logger - Metal Case
- 12x Isolated Analog Input Channel 0-10V, 0-24v, 4-20mA.16 Bit Resolution and 860SPS.
- 4x Isolated Digital Input 24v.
- 3x Isolated Digital Output / PWM 24v.
- 2x Isolated RS485 (Master / Slave) for MODBUS RTU Communication.
- 1x Relay (NO & C).
- 1x Isolated Ethernet 10 / 100Mbps MODBUS TCP Communication.
- 1x USB-Device Interface for Configuring, Monitor
- 12x Isolated Analog Input Channel 0-10V, 0-24v, 4-20mA.16 Bit Resolution and 860SPS.
- 4x Isolated Digital Input 24v.
- 3x Isolated Digital Output / PWM 24v.
- 2x Isolated RS485 (Master / Slave) for MODBUS RTU Communication.
- 1x Relay (NO & C).
- 1x Isolated Ethernet 10 / 100Mbps MODBUS TCP Communication.
- 1x USB-Device Interface for Configuring, Monitoring and Download.
- 1x Wi-Fi / 2G / 4G / LTE Wireless Communication.
- 1X Isolated RS232 communication port.
- Support for Dual SIM.
- External WAN port of Internet connectivity.
- GPS / GNSS*.
- Configurable polling interval .
- Configure and Read Multiple Slave IDs, Selectable Input Register Holding Register & Coil.
- Configurable Data Type and Conversion Method (INT, Long INT, FLOAT, Double Float & RawHex) UINT (ABCD (Big-Endian), DCBA (Little-Endian), CDAB, BADC).
- Industrial Grade Design - Isolated & Protected IO & EMC / EMI Compliance.
- Configurable Scaling factor enabling option for Analog channel.
- Configurable WiFi / GPRS / 4G / LTE Interface.
- Configurable Data Transferring Protocol JSON / MQTT and FTP.
- Support secure communication SSL.
- Support most of the country telecommunications network.
- Offline Data Storage - Supported Upto 16 GB External SD Card.
- Data Logs and stores its CSV file during network failure.
- Logger Sends offline data once Network and Server Connected.
- Auto Maintain socket / server connection.
- No programming knowledge required - totally custom configurable though configuration manger software.
- Support most of the cloud platforms including Microsoft Azure & AWS etc.
- Power Supply - 9 - 36v.
- Support Wall Mount & Din Rail.
Industrial Data Logger - Flame Proof
Industrial Data Logger - Flame Proof
Industrial Data Logger - Flame Proof
- 12 x Isolated Analog Input Channel 0-10V , 0-24v , 4-20mA.16 Bit Resolution and 860SPS.
- 4x Isolated Digital Input 24V.
- 3x Isolated Digital Output / PWM 24V.
- 1x Relay (NO & C).
- 1x Isolated RS485 for MODBUS RTU Communication.
- 1x Isolated Ethernet 10 / 100Mbps MODBUS TCP Communication.
- 1x USB-Device Interface for Configuring, Monitoring and Downlo
- 12 x Isolated Analog Input Channel 0-10V , 0-24v , 4-20mA.16 Bit Resolution and 860SPS.
- 4x Isolated Digital Input 24V.
- 3x Isolated Digital Output / PWM 24V.
- 1x Relay (NO & C).
- 1x Isolated RS485 for MODBUS RTU Communication.
- 1x Isolated Ethernet 10 / 100Mbps MODBUS TCP Communication.
- 1x USB-Device Interface for Configuring, Monitoring and Download.
- 1x WiFi / 2G / 4G / LTE Wireless Communication.
- Configure and Read Multiple Slave IDs, Selectable Input Register Holding Register & Coil.
- Configurable Data Type and Conversion Method (INT, Long INT, FLOAT, Double Float & RawHex) UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC).
- Configurable Scaling factor enabling option for Analog channel.
- Configurable WiFi / GPRS / 4G / LTE Interface.
- Configurable Data Transferring Protocol JSON / MQTT and FTP.
- Support secure communication SSL.
- 16 GB inbuilt storage.
- Data Logs and stores its CSV file during network failure.
- Logger Sends offline data once Network and Server Connected.
- Remote control / Activating Relay / Digital output.
- Configurable Alarm.
- Auto Maintain socket / server connection.
- Easy configurable connectivity for cloud platform AWS / Azure / Google / Oracle / Things board.
- Support most of the cloud platforms including Microsoft Azure & AWS etc.
- Industrial Grade Design - Isolated & Protected IO & EMC / EMI Compliance.
Industrial Date Logger - IP68
Industrial Data Logger - Flame Proof
Industrial Data Logger - Flame Proof
- 12 x Isolated Analog Input Channel 0-10V, 0-24v, 4-20mA.16 Bit Resolution and 860SPS.
- 4x Isolated Digital Input 24V.
- 3x Isolated Digital Output / PWM 24v.
- 1x Relay (NO & C).
- 1x Isolated RS485 for MODBUS RTU Communication.
- 1x Isolated Ethernet 10 / 100Mbps MODBUS TCP Communication.
- 1x USB-Device Interface for Configuring, Monitoring and Download
- 12 x Isolated Analog Input Channel 0-10V, 0-24v, 4-20mA.16 Bit Resolution and 860SPS.
- 4x Isolated Digital Input 24V.
- 3x Isolated Digital Output / PWM 24v.
- 1x Relay (NO & C).
- 1x Isolated RS485 for MODBUS RTU Communication.
- 1x Isolated Ethernet 10 / 100Mbps MODBUS TCP Communication.
- 1x USB-Device Interface for Configuring, Monitoring and Download.
- 1x WiFi / 2G / 4G / LTE Wireless Communication.
- Configure and Read Multiple Slave IDs, Selectable Input Register Holding Register & Coil.
- Configurable Data Type and Conversion Method (INT, Long INT, FLOAT, Double Float & RawHex) UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC).
- Industrial Grade Design - Isolated & Protected IO & EMC / EMI Compliance.
