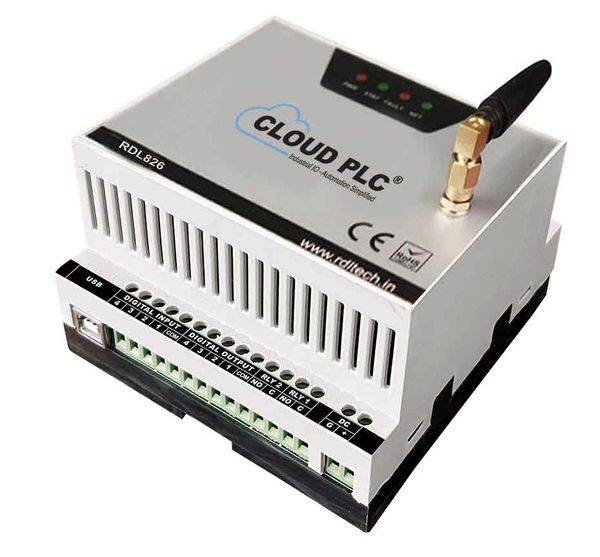

Cloud PLC 4.0

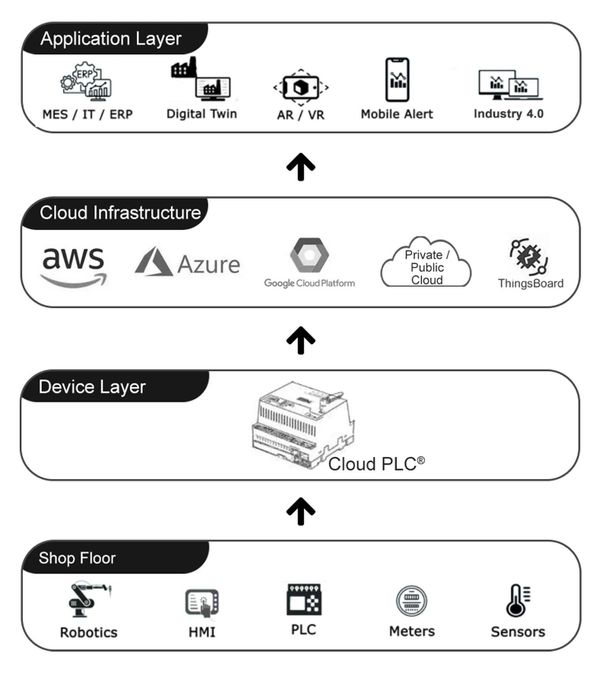

  The Programmable Cloud PLC® offers Unmatched adaptability, reliable connectivity and customizable solution for your industry. Cloud PLC® can be utilized as an edge gateway, Automation tool, data logger & edge processing node. Cloud PLC supporting wide range of industrial protocols like Modbus, MQTT, JSON, RESTful, TCP/UDP, SNMP, OPC which makes the solution integration easier than ever for IT / Automation engineers.

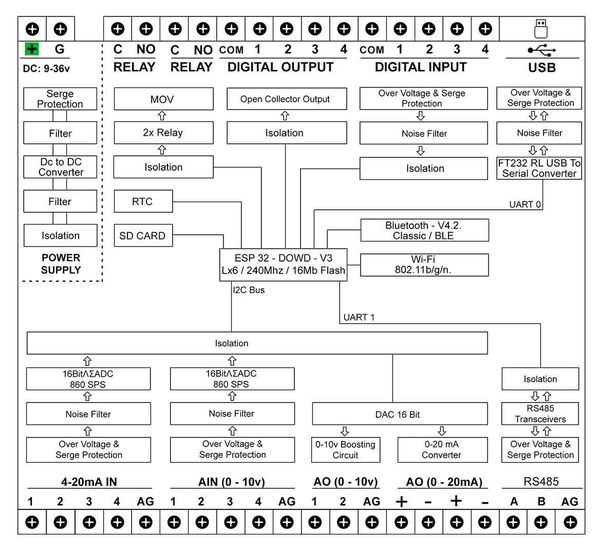

Features

  •  8x Isolated Analog Input Channel 0-10V, 0-24v, 4-20mA. 16 Bit Resolution and 860SPS.
  • 2x Analog Output(AO) 0-10v.
  • 2x 0-20mA transmitter.
  • 4x Isolated Digital Input 24v.
  • 4x Isolated Digital Output / PWM 24v.
  • 2x Relay (NO & C).
  • 1x Isolated RS485  for MODBUS RTU Communication.
  • 1x Isolated RS232 communication port.
  • 1x USB-Device Interface for Configuring, Monitoring & Download.
  • 1x WiFi / Bluetooth / BLE  Wireless Communication.
  • Industrial Grade Design - Isolated & Protected IO & EMC / EMI Compliance.
  • Protocol JSON / MQTT, RESTful, TCP/UDP, SNMP & OPC.
  • Support secure communication SSL.
  • 16 GB inbuilt storage*.
  • Support most of the cloud platforms including Microsoft Azure & AWS etc.
  • Real Time Clock - RTC DS3231, Accuracy: : +/- 3.5ppm From -40 to +85 Degree C
  • Power Supply -  DC 9-36V.

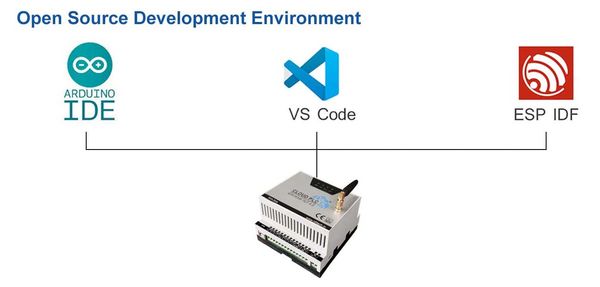

Open Source Development Environment

 Cloud PLC®  4.0 can used to build the custom industrial solution for monitoring and controlling PLC and SCADA, HMI, VFD, Motors, servo, Valves, energy meter, actuators, relays, encoder, RFID and fingerprint readers and industrial sensors.

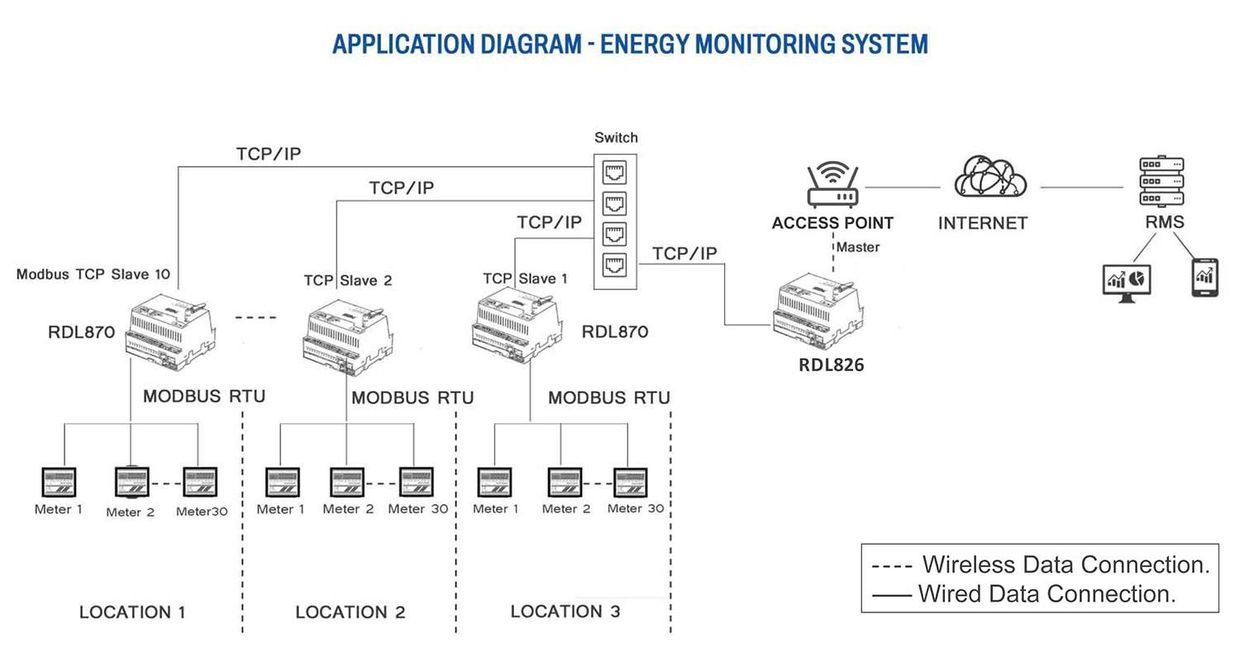

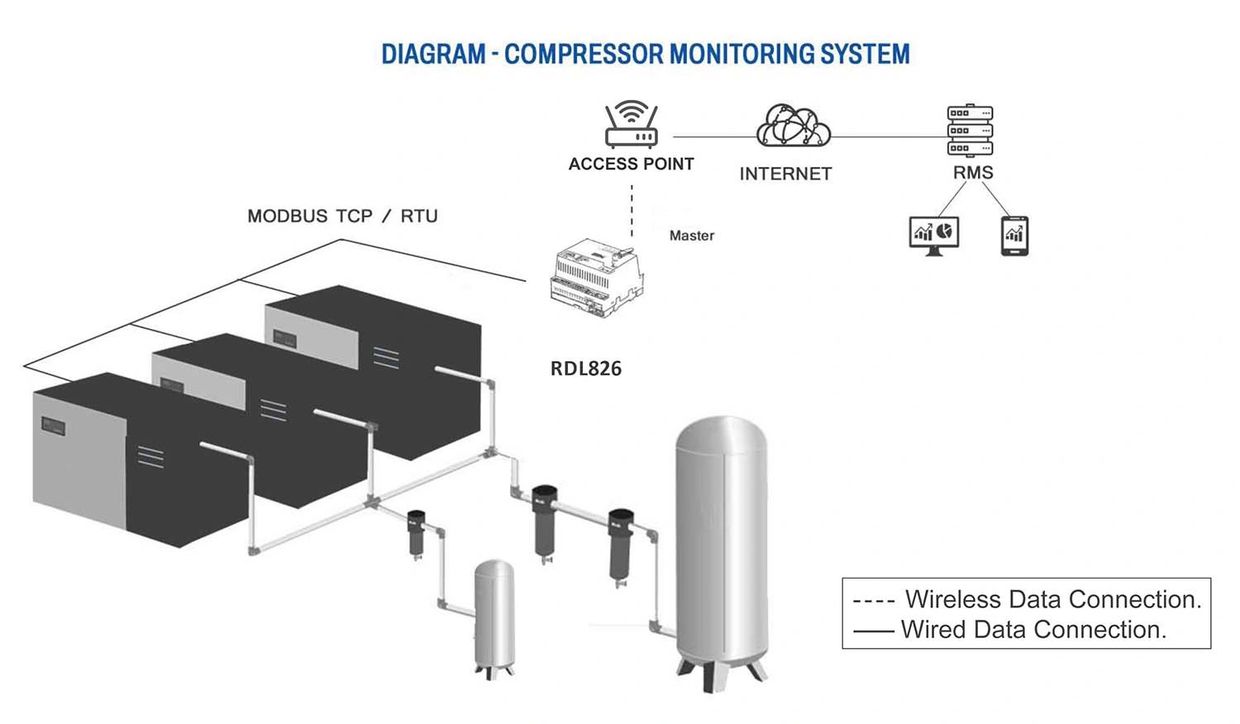

Applications



  • Production and process monitoring.
  • Utilities monitoring.
  • Condition monitoring.
  • Environment monitoring.
  • Industrial Smart grid.
  • Leakage detection.
  • Generator monitoring.
  • Cold storage monitoring.
  • Warning message in case of calamities.
  • Standard SCADA Applications.
  • District Metering.
  • Water Treatment.
  • Green House.









OEM & ODM Services

OEM & White Label Service



RDL OEM (Original Equipment Manufacturer) that designs and builds a product based on their own specification, and then sells it to another company for branding and distribution.

OEM Minimum order quantity 100 to 500 no's.

Custom Solution Development

 Quick adaptability to any kind of customization requirements be it structural, functional, or Look-and-feel. Seamless transformation made possible for every possible aspects to tailor the standard products to realise your creative imagination.

Related Products

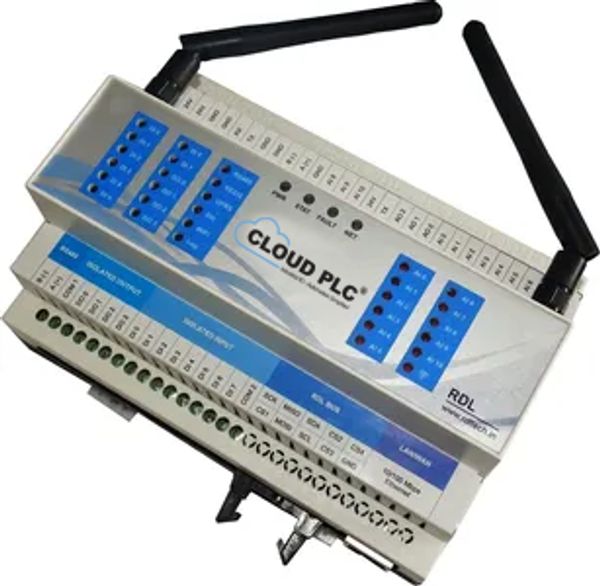

Cloud PLC® - Ethernet : RDL892

Cloud PLC® - Ethernet : RDL892

Cloud PLC® - Ethernet : RDL892

  • 12x Isolated Analog Input Channel 0-10V, 0-24v, 4-20mA. 16 Bit Resolution and 860SPS.
  • 4x Isolated Digital Input 24V.
  • 3x Isolated Digital Output / PWM 24V.
  • 1x Relay (NO & C).
  • 1x Isolated RS485 for MODBUS RTU Communication.
  • 1x Isolated Ethernet 10 / 100Mbps MODBUS TCP Communication.
  • 1x USB-Device Interface for Configuring, Monitoring and Download

  • 12x Isolated Analog Input Channel 0-10V, 0-24v, 4-20mA. 16 Bit Resolution and 860SPS.
  • 4x Isolated Digital Input 24V.
  • 3x Isolated Digital Output / PWM 24V.
  • 1x Relay (NO & C).
  • 1x Isolated RS485 for MODBUS RTU Communication.
  • 1x Isolated Ethernet 10 / 100Mbps MODBUS TCP Communication.
  • 1x USB-Device Interface for Configuring, Monitoring and Download.
  • 1x Wi-Fi & Bluetooth Wireless Communication.
  • 16 GB SD Card Storage*.
  • Controller / Processor : Xtensa® 32-Bit LX7 Dual Core, 32 Bit, Upto 240MHz,
  • 16 MB Flash Memory.

Shop Now

Cloud PLC® - LORA : RDL893

Cloud PLC® - Ethernet : RDL892

Cloud PLC® - Ethernet : RDL892

  • 12x Isolated Analog Input Channel 0-10V, 0-24v, 4-20mA. 16 Bit Resolution and 860SPS.
  • 4x Isolated Digital Input 24V.
  • 3x Isolated Digital Output / PWM 24V.
  • 1x Relay (NO & C).
  • 1x Isolated RS485 for MODBUS RTU Communication.
  • 1x LORA Communication.
  • 1x USB-Device Interface for Configuring, Monitoring and Download.
  • 1x Wi-Fi & Bluetooth Wireless Commun

  • 12x Isolated Analog Input Channel 0-10V, 0-24v, 4-20mA. 16 Bit Resolution and 860SPS.
  • 4x Isolated Digital Input 24V.
  • 3x Isolated Digital Output / PWM 24V.
  • 1x Relay (NO & C).
  • 1x Isolated RS485 for MODBUS RTU Communication.
  • 1x LORA Communication.
  • 1x USB-Device Interface for Configuring, Monitoring and Download.
  • 1x Wi-Fi & Bluetooth Wireless Communication.
  • 16 GB SD Card Storage*.
  • Controller / Processor : Xtensa® 32-Bit LX7 Dual Core, 32 Bit, Upto 240MHz
  • 16 MB Flash Memory.

Shop Now

Cloud PLC® - 4G / LTE : RDL894

Cloud PLC® - Ethernet : RDL892

Cloud PLC® - 4G / LTE : RDL894

  • 12x Isolated Analog Input Channel 0-10V, 0-24v, 4-20mA. 16 Bit Resolution and 860SPS.
  • 4x Isolated Digital Input 24V.
  • 3x Isolated Digital Output / PWM 24V.
  • 1x Relay (NO & C).
  • 1x Isolated RS485 for MODBUS RTU Communication.
  • 1x USB-Device Interface for Configuring, Monitoring and Download.
  • 1x 4G / LTE Communication (Max 150Mbps Down Link / Max 50

  • 12x Isolated Analog Input Channel 0-10V, 0-24v, 4-20mA. 16 Bit Resolution and 860SPS.
  • 4x Isolated Digital Input 24V.
  • 3x Isolated Digital Output / PWM 24V.
  • 1x Relay (NO & C).
  • 1x Isolated RS485 for MODBUS RTU Communication.
  • 1x USB-Device Interface for Configuring, Monitoring and Download.
  • 1x 4G / LTE Communication (Max 150Mbps Down Link / Max 50 Mbps Uplink).
  • 16 GB SD Card Storage*.
  • Controller / Processor
  • Qualcomm MDM9207, ARM® Cortex® A7 1.3 Ghz.

Shop Now

Cloud PLC® - RPI-0 : RDL895

Cloud PLC® - Ethernet : RDL892

Cloud PLC® - 4G / LTE : RDL894

  • 12x Isolated Analog Input Channel 0-10V, 0-24v, 4-20mA. 16 Bit Resolution and 860SPS.
  • 4x Isolated Digital Input 24V.
  • 3x Isolated Digital Output / PWM 24V.
  • 1x Relay (NO & C).
  • 1x Isolated RS485 for MODBUS RTU Communication.
  • 1x Isolated Ethernet 10 / 100Mbps MODBUS TCP Communication.
  • 1x USB-Device Interface for Configuring, Monitoring and Download

  • 12x Isolated Analog Input Channel 0-10V, 0-24v, 4-20mA. 16 Bit Resolution and 860SPS.
  • 4x Isolated Digital Input 24V.
  • 3x Isolated Digital Output / PWM 24V.
  • 1x Relay (NO & C).
  • 1x Isolated RS485 for MODBUS RTU Communication.
  • 1x Isolated Ethernet 10 / 100Mbps MODBUS TCP Communication.
  • 1x USB-Device Interface for Configuring, Monitoring and Download.
  • 1x Wi-Fi & Bluetooth Wireless Communication.
  • 16 GB SD Card Storage*.
  • Controller / Processor
  • Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.8GHz.
  • 16 MB Flash Memory.

Shop Now

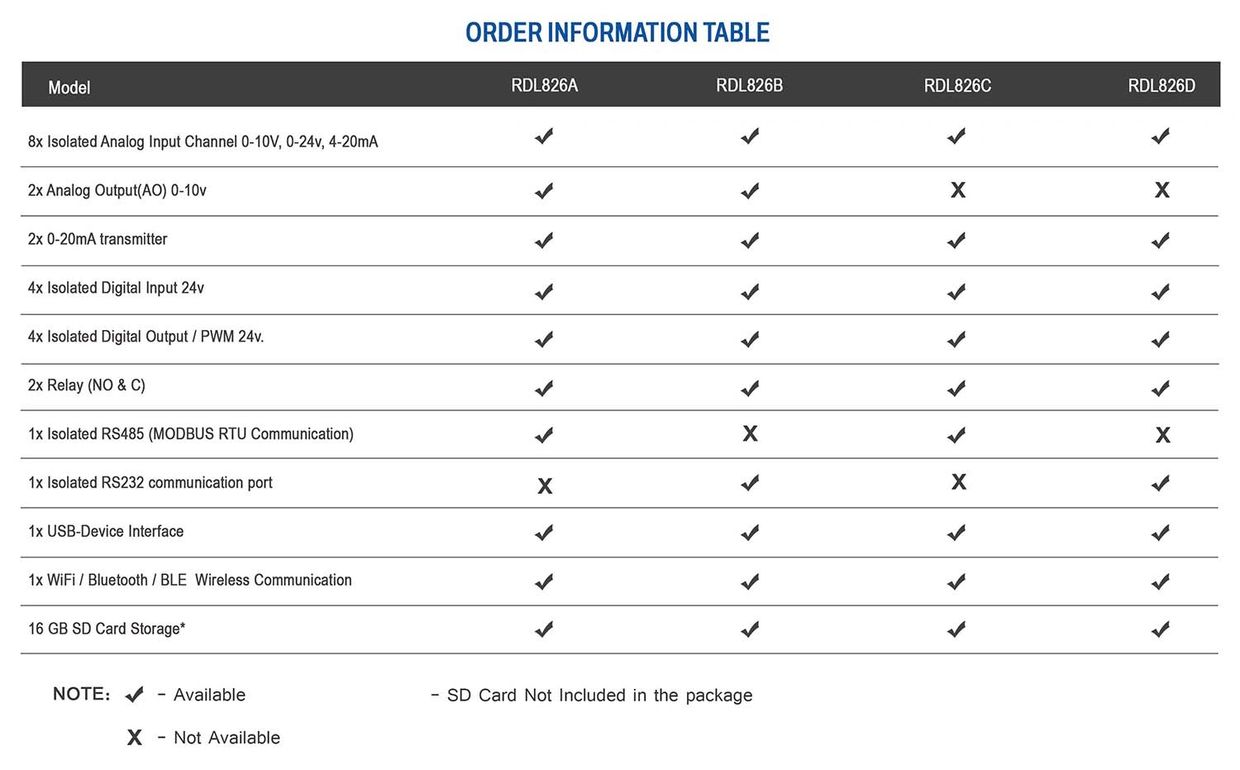

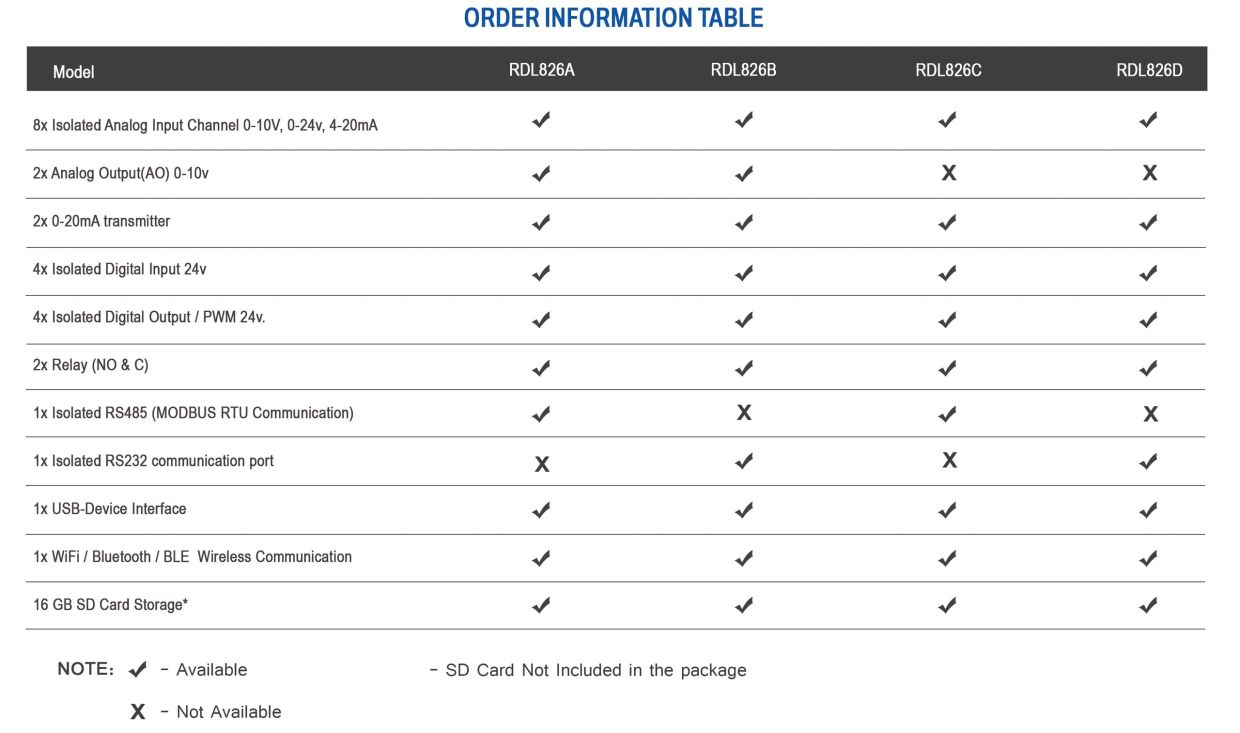

Order Information

Partnership Program

Become a Dealer

Downloads

Cloud PLC - Data Sheet (pdf)
